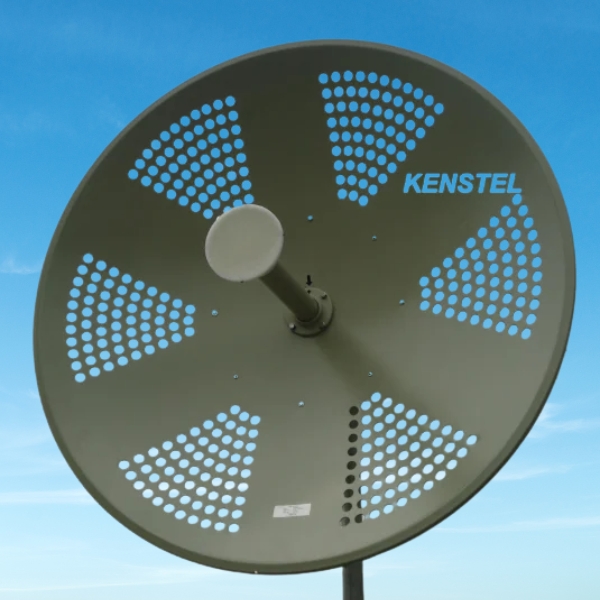

32 dBi Perforated Dish Antenna
FREQUENCY (MHz) :
5150-5875
POLARIZATION :
Vert. & Hor. OR ±
45° Slant
MODEL NO :
KDG5800-32DP
Description
| Electrical Data | |
| Frequency (MHz) | 5150 – 5875 |
| Gain (dBi) | 32 |
| VSWR (Max) | <1.6:1 |
| Polarization | Horizontal and Vertical |
| H Plane BW (Degrees) | 3 |
| E Plane BW (Degrees) | 3 |
| Port to Port Isolation (dB) | >30 |
| Cross Polar Ratio (dB) | >25 |
| Front to Back Ratio (dB) | >40 |
| Impedance (Ohms) | 50 |
| Maximum Power Handling (Watts) | 100 |
| Connector Termination | N(F) |
| Mechanical Data | |
| Dimension (mm) | Ø 900 mm |
| Weight with Mounting (Kg) | 8.5 |
| Colour | White |
