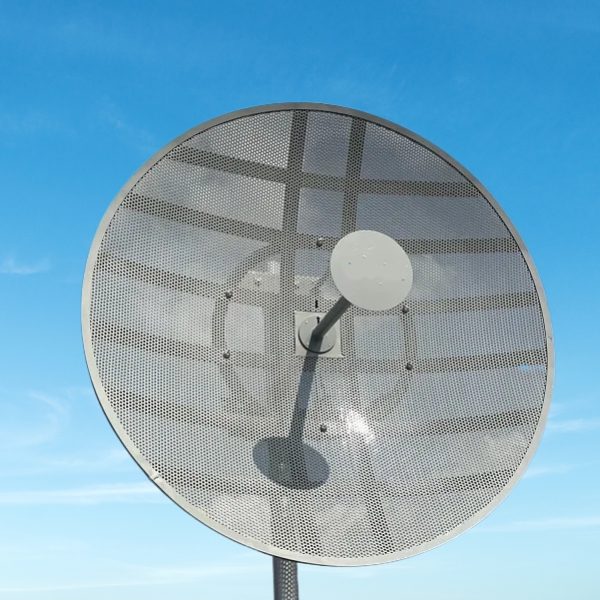

24 dBi Perforated Dish Antenna
FREQUENCY (MHz) :
2300-2400
POLARIZATION :
Vert. & Hor. OR ±
45° Slant
MODEL NO :
KDG2300-24DP
Description
| Electrical Data | |
| Frequency Range | 2300-2400 MHz |
| Bandwidth | 100 MHz |
| Gain | 24 dBi |
| Half-Power Beamwidth (Horizontal) | 8 degree |
| Half-Power Beamwidth (Vertical) | 8 degree |
| Front-to-Back Ratio | <30 dB |
| VSWR | < 1.5 |
| Input Impedance | 50 Ohm |
| Polarization | Vertical & Horizontal OR ± 45° Slant |
| Port Isolation | <28 dB |
| Cross Polar Ratio | <25 dB |
| Electrical Tilt | 0° degree |
| Lightning Protection | Direct Ground |
| Maximum Power | 100 Watt |
| Connector Type | N female |
